How to configure Gauge widget

•

  aranet-techsupport

  Posted: 31.03.2022 13:56

  Modified: 27.10.2025 00:24

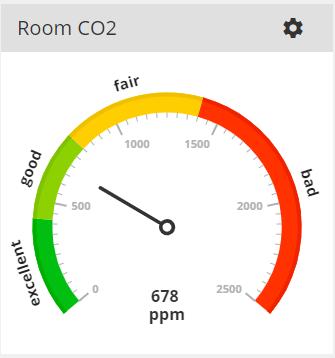

  Aranet Cloud dashboard tile Gauge widget presents sensor data in a "speed-o-meter' view.


  The tile can be created in a usual way: from the Dashboard or from the Sensors view:

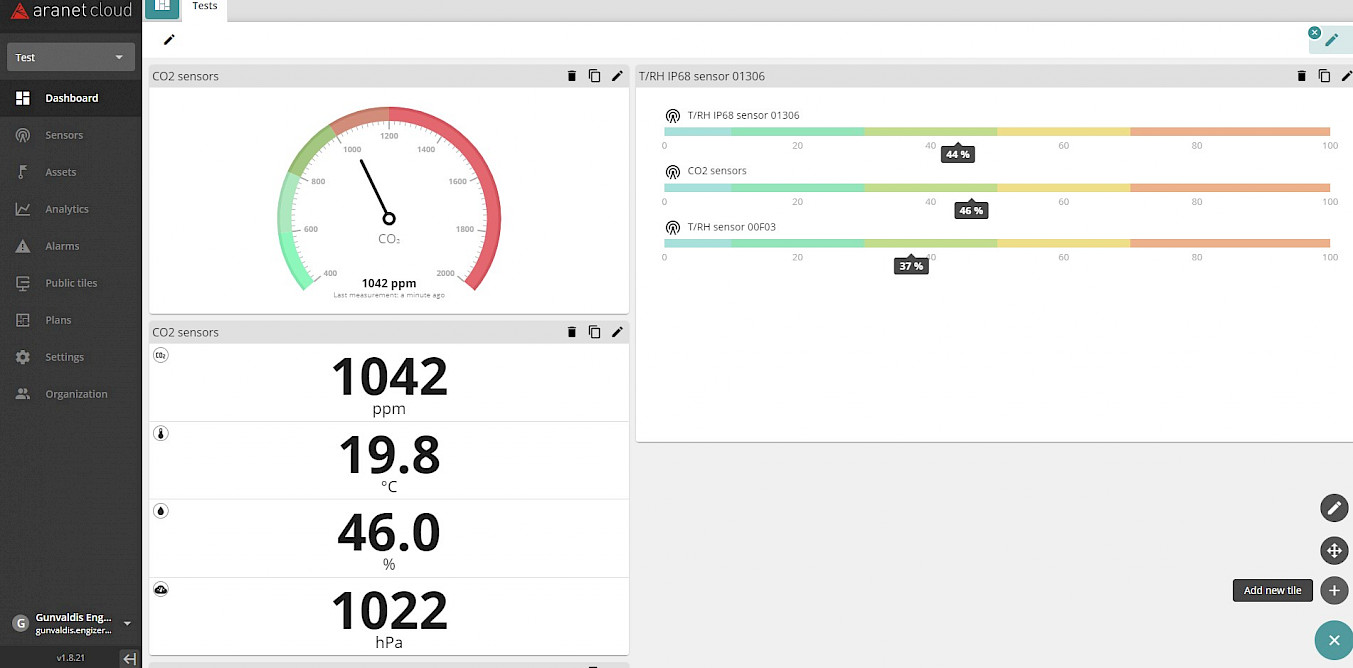

  1. Open Dashboard, click on "GEAR" icon in the right lower corner and then click on "+" to add new tile

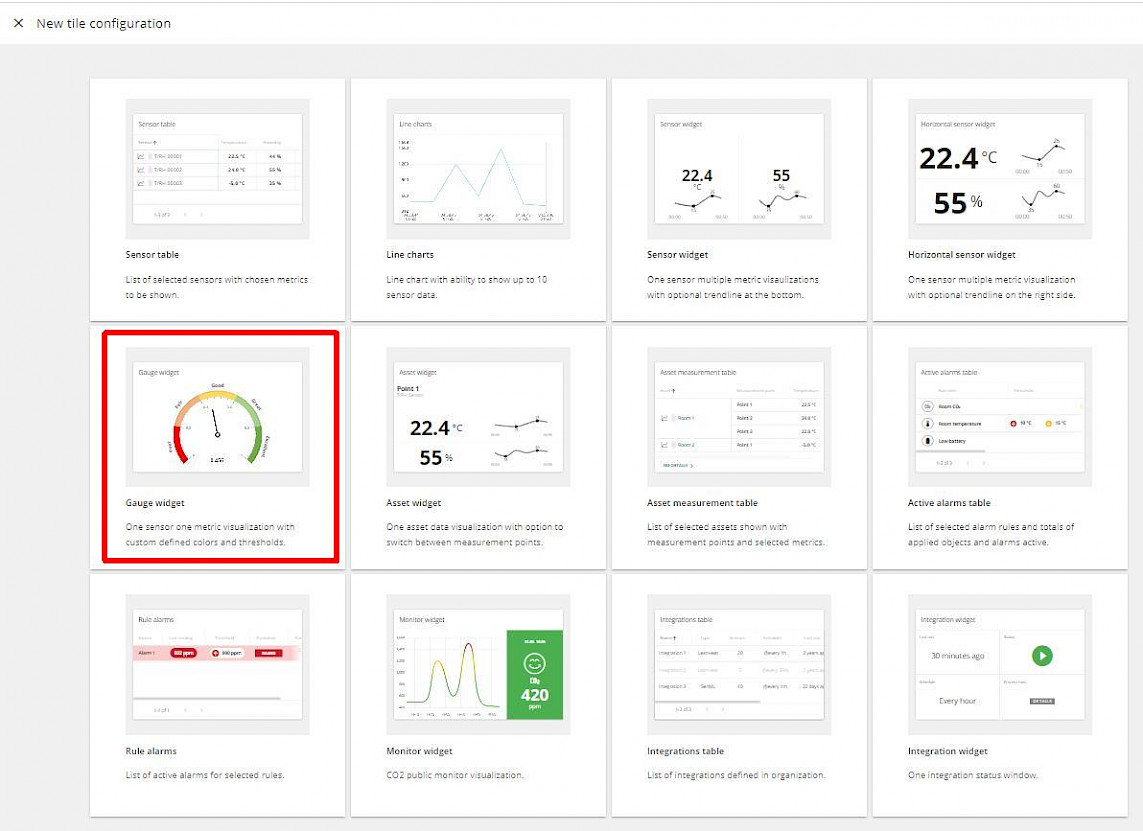

  2. Select Gauge widget from the Tiles in opened window:

  3. Tile configuration page will open.

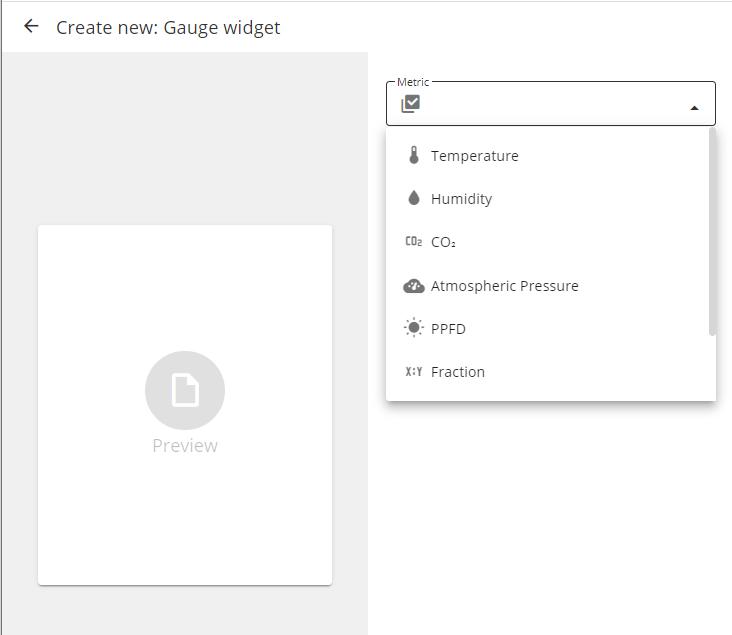

     Select Metrics of the tile from drop-down list:

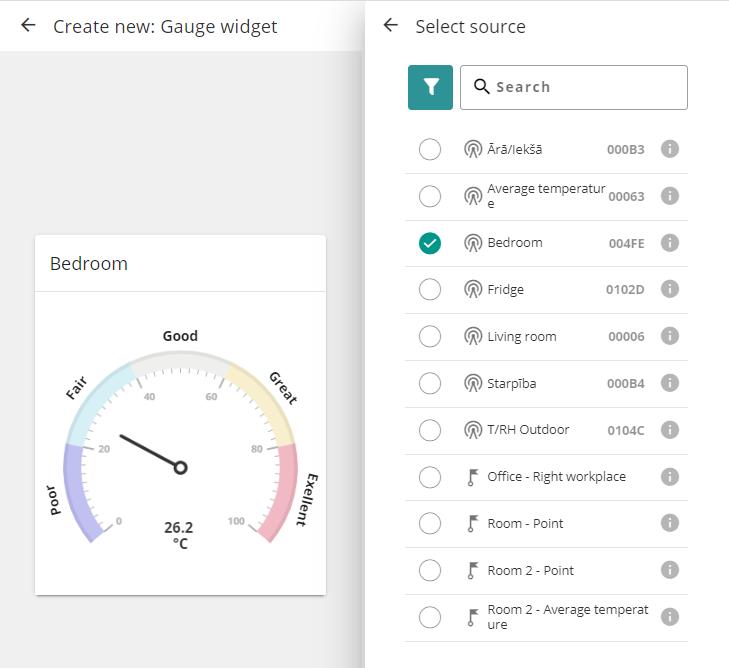

  4. Select the source of the data for the tile; you can filter by Locations and Tags:

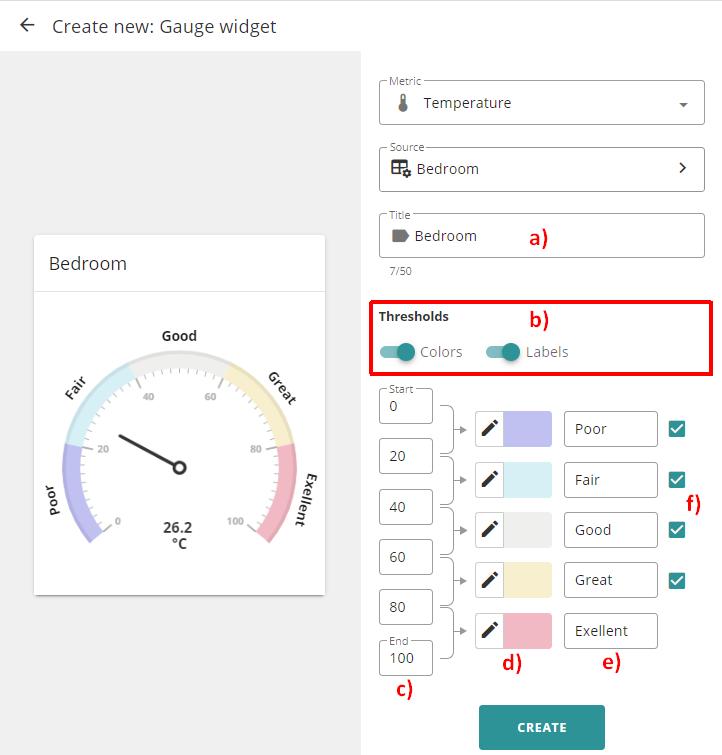

  5. Now you have the ability to adjust:
     a) Tile Title;
     b) Thresholds visibility;
     c) Start, End, and Intermediate thresholds values;
     d) Sector colors - by clicking on color plate;
     e) Sector labels;
     f) Number of sectors - by marking/unmarking check-boxes


     When all corrections are made, click CREATE button to finish.

  Let's consider some examples of Temperature sensor applications and possible corresponding gauge configurations.

  • Living Room Temperature sensor

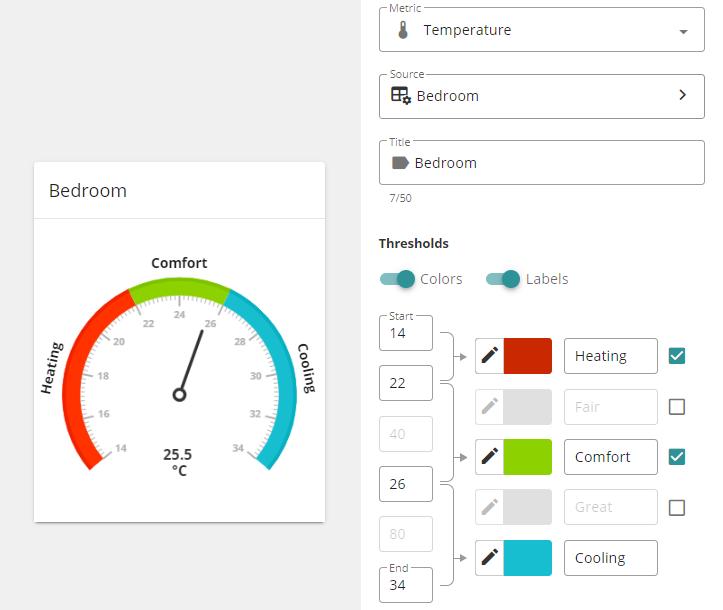

    Assuming that comfort temperature is between 22 and 26 degrees Celsius, the configuration and view can be following:

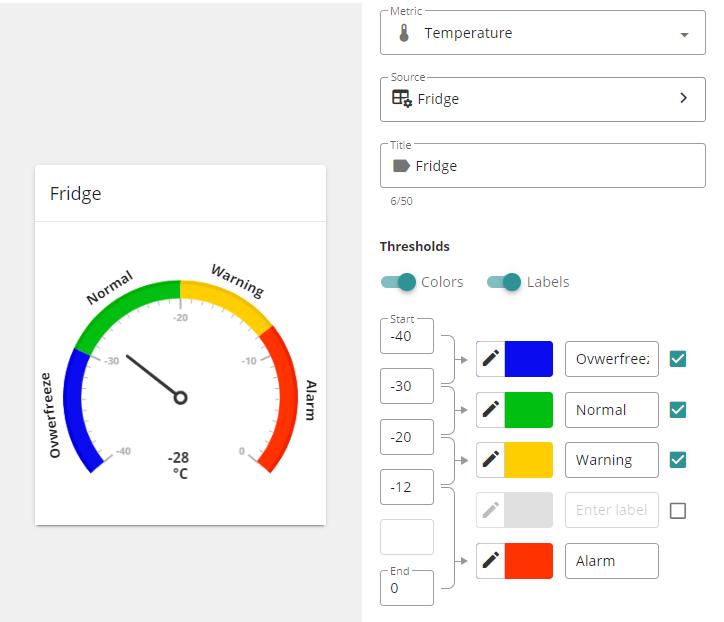

  • Freezer Temperature sensor


  In a similar way, you can adjust the Gauge widget to your own needs.
